COME TO NK
INSTRUMENTS PVT. LTD.
A
NK GROUP
COMPANY
NK Instruments
Pvt. Ltd.
is a 'NK
Group'
Company.
NK Group is in
to diversified
activities. The
mother Co. of
this group is NK
Instruments Pvt.
Ltd., who deals
in the field of
Industrial Process
Control Instruments
from one decade.
N.
K. Enterprises
takes the Turnkey
Projects, and
also undertakes
the System Automation
Projects, for
Process Industries.
And NK
Technologies
has activities
of Website Designing
and Development,
Web Hosting, Domain
Booking, Web Promotion,
SEO, Multimedia
CD Presentations
and Software Solutions
etc.
NK Instruments
Pvt. Ltd. is in
the field of supply
of varieties of
Process Control
Instruments and
Automation Systems.
We have
the Process Control
Instruments whcih
are required for
indication and
control of process
parameters like
Pressure, Differential
Pressure, Temperature,
Flow, Level, Conductivity
and Density. Other
than standard
range of Process
Control Instruments,
we also deal in
to Tailor made
Electronic Instrumentation.
Depending of the
process requirements,
requirements of
user’s changes
and those becomes
specific, in certain
cases. We design
and develop the
Instruments as
per the client’s
requirements.
Those are mainly
in to demand at
Building Automation
Systems, Dosing
Systems, Batching
Systems, Smoke
Analysis etc.
We also have a
base in System
Automations.
Our
instruments are
being used by
almost all types
if industries
like chemical,
Petrochemical,
Pharmaceutical,
Refineries, Paper
& Pulp Industries,
Soaps & Detergents,
Food and Beverages,
Glass industries,
Cement Industries,
Material Handling,
Building Construction,
Hydraulic &
Pneumatic Systems,
Air Conditioning
and Lubrication
systems, Special
Purpose Machines,
Boilers, Heat
Exchangers etc.
and we are gettings
their repeat orders.
The repeat orders
from our clients
proves, satisfaction
of our clients
towards our Instruments
and our Services.
In Tailor Made
Instrumentation
we cover Customized
Instruments like,
Programmable Process
Indicators and
Controllers, Programmable
Sequential Timers,
Loop Powered Indicators,
Large Sized Digital
Indicators, Square
Root Extractors,
Flow Totalizers,
Scrolling Displays,
Data Loggers,
Process Scanners,
Data Acquisition
Systems, Programmable
Timers, Programmable
Time Totalizers,
Batch Controllers,
Dosing Controllers,
On-Off Controllers,
PID Controllers,
PID Controllers
with Ramp &
Soak, Bar Graph
Indicators, RS
232 to RS 485
Converters, RS
422 to RS 232
Converters, Temperature
Humidity Controllers,
Capacitor Testers,
Universal Tensile
Testing System,
Continuous Emission
Monitoring System,
Earth Open Controllers,
Multi Channel
Indicators, Multi
Channel Controllers,
Tanker Unloading
Systems, Can Filling
Systems, Drum
Filling Systems,
Industrial Dispensers,
Fuel Consumption
Systems for Furnaces
/ Boilers / Gensets
/ Vehicles, Circular
Chart Recorders
with Modbus communication,
RS 485 or, RS
232 communications
and also the standard
Digital Instruments,
Indicators, Controllers,
Totalizers. etc.
We also undertake
Turn Key Instrumentation
Projects and PLC
& SCADA based
control system
as well as System
Automation Projects.
We
do not just provide
the instruments
but, we study
the application
and advice the
suitable instruments
for their processes.
Details
of our range of
Process Control
Instruments, are
given in this
website.
Pressure, Vacuum & Compound Gauges
Pressure & Vacuum
Gauges: Pressure gauges and vacuum gauges are very
commonly used instruments for measurement of pressure
in process in almost all type of industries. We have
bourdon type Pressure Gauges; Diaphragm sealed pressure
gauges, Shaffer’s Diaphragm Gauges, Electrical Contact
type Gauges, Master Gauges, Test gauges, Remote Sealed
gauges etc. All these gauges are advised for specific
application.

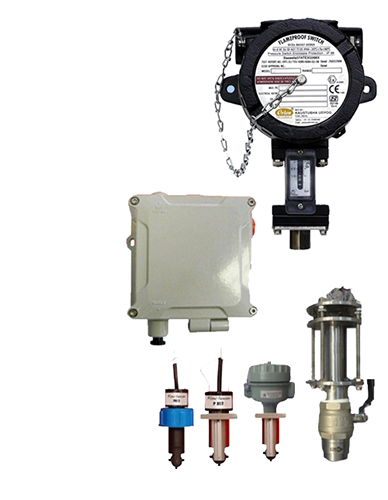

In Pressure & Vacuum Switches there are again two
categories: Fixed Differential Pressure Switches and
Adjustable Differential Pressure Switches.
In any application when the potential free contact
is required as soon as the pressure in process exceeds
desired pressure limit (either on rising side or on
falling side). Fixed Differential Pressure switches
are used. Such switches are available in Vacuum ranges
also.
In some applications the pressure in the vessel has
to be controlled between two limits higher and lower.
The switch which has a facility to set the gap between
higher set value and lower set value, Such type of pressure
switches are known as Adjustable differential type pressure
switches.
We have both the type of switches available in pressure
range 15 mmwc to 600 bar) and vacuum range (50 mmWc
upto 760 mmHg vacuum). All these switches are available
in IP 40, IP 54, IP 65 or flameproof enclosure. These
pressure switches and vacuum switches we can provide
in Aluminium, Brass and SS pressure housing and Teflon/Neoprene
diaphragm. Pressure Switches can be provided with contact
parts as per process requirements. Pressure Switches
and Vacuum Switches can be provided with Diaphragm Seals
and Remote Diaphragm seals also. Repeat Accuracy of
our pressure switches and vacuum switches is better
than 1% FSR.
Vacuum Switches are mainly used for interlocks inVacuum
based machines like wrapping, packing etc.
When output in terms of mA or mV if required
in proportion to the pressure available in process
vessel, Pressure Transmitters or Pressure Transducers
are used. Pressure Transmitter and Pressure Transducers
are normally available with SS 316 wetted parts for
range from few mmWc up to 1000 bar in IP 65 or flameproof
enclosure. These can be provided either blind type
or, with Digital Readout. We provide then in accuracy
of 1%, 0.5%, 0.25% as per customers requirement.

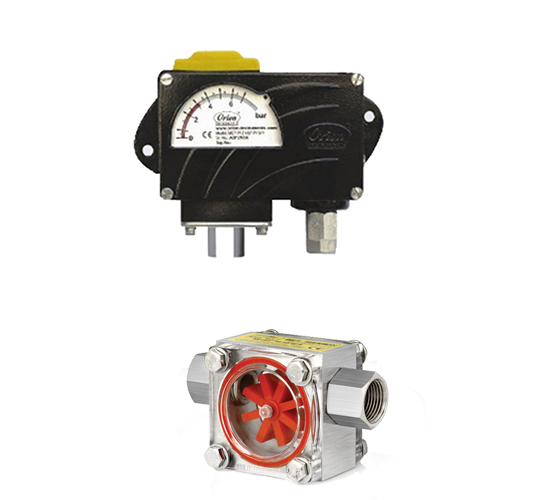

Differential Pressure Gauges (DP gauges) works
on different types of sensing elements. Bourden type
DP Gauges, Diaphragm type DP Gauges or, Piston type
DP Gauges. All these gauges are available with varieties
of wetted parts like Aluminium, Brass, SS, Industrial
Plastic or any special as per the specific requirement.
Differential Pressure Gauges are available in Analogue
or, Digital form and can be provided for DP range
from 15 mmWc up to 70 bar with Higher Static Pressure
up to 300 bar. Differential Pressure Gauges are mainly
used in the application of Filters or any other type
of filtration systems, HVAC and for flow measurement
through Orifice plate.
Normally used in the applications where potential
free contact is required when DP crosses the desired
DP either on rising or on falling side. We provide
this contact through Micro Switches or Reed Switches.
DP Switches are available in wetted parts like Aluminium,
Brass, SS, Industrial Plastic or any special as per
process requirements. The DP switches are also available
with Diaphragm Seals and Remote Diaphragm seals. Ranges
available in Differential Pressure Switches are for
15 mmWc up to 70 bar with higher static pressure up
to 300 bar. Differential Pressure Switches (DP Switches)
are available in IP 40, IP 54, IP 65 and flameproof
enclosures. Combination of DP gauge with switch also
can be provided. DP Gauges can be provided in dial
sizes like 50 mm, 65 mm, 80 mm, 100 mm and 150 mm.
It is considered to be one of the important parameter
in process industry. Most of the process in the industry
like Food, Chemical, Pharmaceutical, Petrochemical,
Textile, Tile manufacturing, Automobile, Automation
etc. depend upon the variation of the flow and are necessary
to be indicated or controlled. Varieties of Instruments
for fluid flow measurements are available. For different
type of liquids and slurries. For conductive fluid (Electromagnetic
Flow Meter), for clear water (Turbine Flow Meter, Rota
Meter), for Oil, Diesel, Petrol applications (Positive
Displacement Flow Meter i.e. PD Meter), Non-contact
type flow measurement, essential in few Pharmaceutical
industries (Ultrasonic Flow Meters). NK Instruments
has also revolutionized in the field of electro-mechanical
flow meters by introducing Floredo which is battery
operated, digital indication of instantaneous flow rate
as well as totalized flow (Rate of Flow with Totalizer)
without any mounting restrictions with better accuracy
compared to Rota meters or any of the water meters used
in industries.
For positive detection of fluid flow, Flow Switches
are used. Flow Switches are available for liquids &
Gases like, water, kerosene, lubricating oils, air etc.
Flow Switches are used to ensure availability of desired
flow or no flow in your system in order to prevent or
to control any disaster in the industry. Magnetically
or Micro Switch operated flow switches are available
from 6 mm line size. Magnetically operated Flow Switches
(Blind Flow Switches, Flow Indicating Switches) are
normally used for low flow capacities max. up to 150
LPM. Micro Switch operated Paddle Type Flow Switches
are an ideal solution for higher flow rates and bigger
line sizes.
According to the type of applications, varieties of
level switches can be provided. For different
types of clear liquids Float type Level Switches or
Capacitance type Level Switches, for conductive liquids
Conductivity type Level Switches are used. For dry
powders and pallets Rotating Paddle type Level Switch
or, Vibrating Fork type Level Switches are recommended.
RF Admittance Level Switches can be used for dry powders,
pallets as well as slurries & pastes. In pharmaceutical
Industries and Effluent Treatment plants only Non
Contact type Level Switches are allowed. In such applications
Ultrasonic Level Switches can be used. Level switches
can be provided either side mounted or top mounted.
Wetted parts in Level Switches are in Industrial Plastic,
PVDF, Teflon, SS 316 or any special as per the customer’s
requirement.
For different types of applications, specific type
of Level Measuring Instruments is used. For liquid
Level Indication by Mechanical device, Tubular Glass,
Follower type Level Indicator, Bi-color Level Indicators
or, float & board type level indicators are used.
These Level Instruments can also be provided with
preset or, factory settable Level Switches. Float
type Level Transmitter (Float type Level Indicators)
are used where 4 to 20 mA out put is essential or,
level indication is required in Digital display. For
non contact type Level measurement Ultrasonic or,
Radar type Level Transmitters (Level Indicators) are
used.
For online detection and control of conductivity
of fluid in any process industry Conductivity Meters
or TDS meters are used. Normally the range required
is from 2 to 2000 micro siemens.
On-line conductivity indicators with IP-65 plastic enclosure
for corrosive or dusty atmosphere as well as Panel mounted
controllers for automatic activation of Pumps or alarms
with settable relay are available. Applications related
to Pharmaceutical as well as cleaning of insulators
in power stations.
NK Instruments has availability of not only these but
the instruments like Pneumatic Proximity Switches, pH
meters and many other Process Control Instruments. Our
customers are satisfied as they get all varieties of
process control instruments available under one roof.
The repeat orders always prove the satisfaction of the
clients. We offer perfect solutions to client’s process
control expectations. With proper co-ordination and
communication we also arrange for perfect solution and
fast availability of our instruments & solutions.
Density is a very critical
parameter in many industrial processes. It can be
measured either manual or, online methods. In manual
measurement systems, each sample has to be put in
the measuring bowl to take the reading of Density.
But in case of On line Density Measurement we can
pass the fluid through the density meter and the density
would be indicated instantaneously. Non contact type
on line Density meters working on gama rays are also
available, which are normally used for slurries, sewage
and liquids with highly sensitive, accurate real time
o-line measurement of Density. The density meters
are mainly used when variations in density of the
products affects the product quality or, its commercial
value. The industries like petrochemicals, Pharmaceutical
and food industries mainly requires the online density
measuring instruments. These instruments are designed
to withstand industrial environments while continuously
monitoring liquid composition in flowing streams,
ranging up to 2.5 kg/m3. Transmitters with accurately
dependable and highly repetitive can also be given
for control purposes.
Temperature is probably the most fundamental parameter
and is widely used to measure the industrial variable.
There are various types of temperature gauges &
Indicators such as Bi-metal temperature gauge, Mercury
filled temperature gauge (Rigid stem type), Mercury
filled temperature gauge (capillary type), Digital
temperature Indicators (using the Pt-100 or, RTD sensor).
The temperature ranges covered here is from -38 degree
C. to 600 degree C. with different mounting styles,
and process connections 3/8”, ½” BSP and NPT threads.
To control the temperature in the process, Temperature
Switches are used. Types of Temperature Switches are
either Mercury Filled blind Temperature Switches or,
Electrical contact type temperature gauges. In Electrical
Contact Temperature Gauges indication of Temperature
as well as switching contacts are provided. Electrical
Contact Gauges are available with capillary (up to
8 meters in copper, PVS and SS 316) also.
In
order to sense the presence of material moving through
a conveyer Proximity switches with electrical signal
through change over contact are used. There are two
types of Proximity Switches, one which works on Light
rays and the another which works on back pressure.
In Pneumatic Proximity Switches the switch actuates
on the back pressure developed by the air jet impact
on the object such as dimensioning, positioning,
and working surfaces. The distance sensed by this
switch is generally dependent on the profile of the
surface. This typically being 0.01 to 0.15mm.
