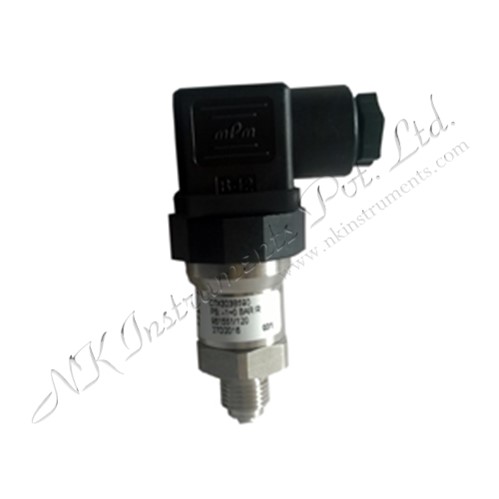

Compact type Pressure Transmitters
Compact type Pressure Transmitters
These type of Pressure Sensor senses the pressure in the process and gives the output
in current or, voltage in proportion to the change in pressure. Varieties of Blind type
Pressure Transmitters are available with respect to the range,the accuracy,
the type of application and the enclosure.
Indication : without
• Output options : 4 to 20 mA, 0 to 10 Vdc, 1 to 5 Vdc or, 0.5 to 4.5 V dc under 5 V dc
• Accuracy : +/- 0.1%, 0.2%, 0.25%, 0.4%, 0.5% or, 1% of FS
• Enclosure type : IP 65, IP 67, IP 68, Exproof
• Zero and Span Adjustment : With or, Without
• Process connection options : 1/4" BSP threaded end,
Flush Diaphragm, Triclamp, DIN, Homogenizer, SMS,
• Ranges : various ranges from 0 to 100 mbar upto 0 to 400 bar
• Max. pressure : 1.5 Times of Working Pressure.
• Operating Temperature: 0 to 60, 0 to 90 or, 0 to 125 degree
