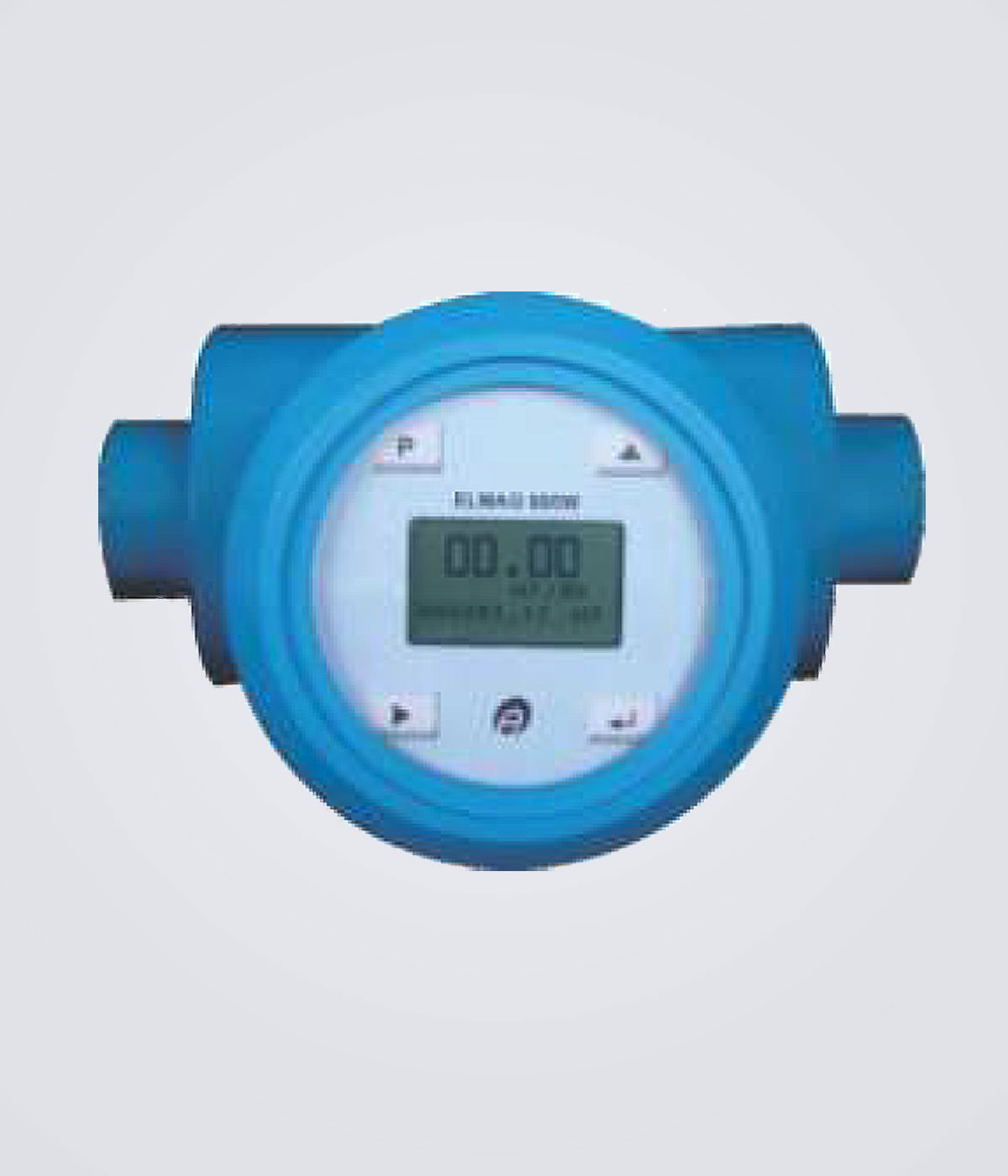

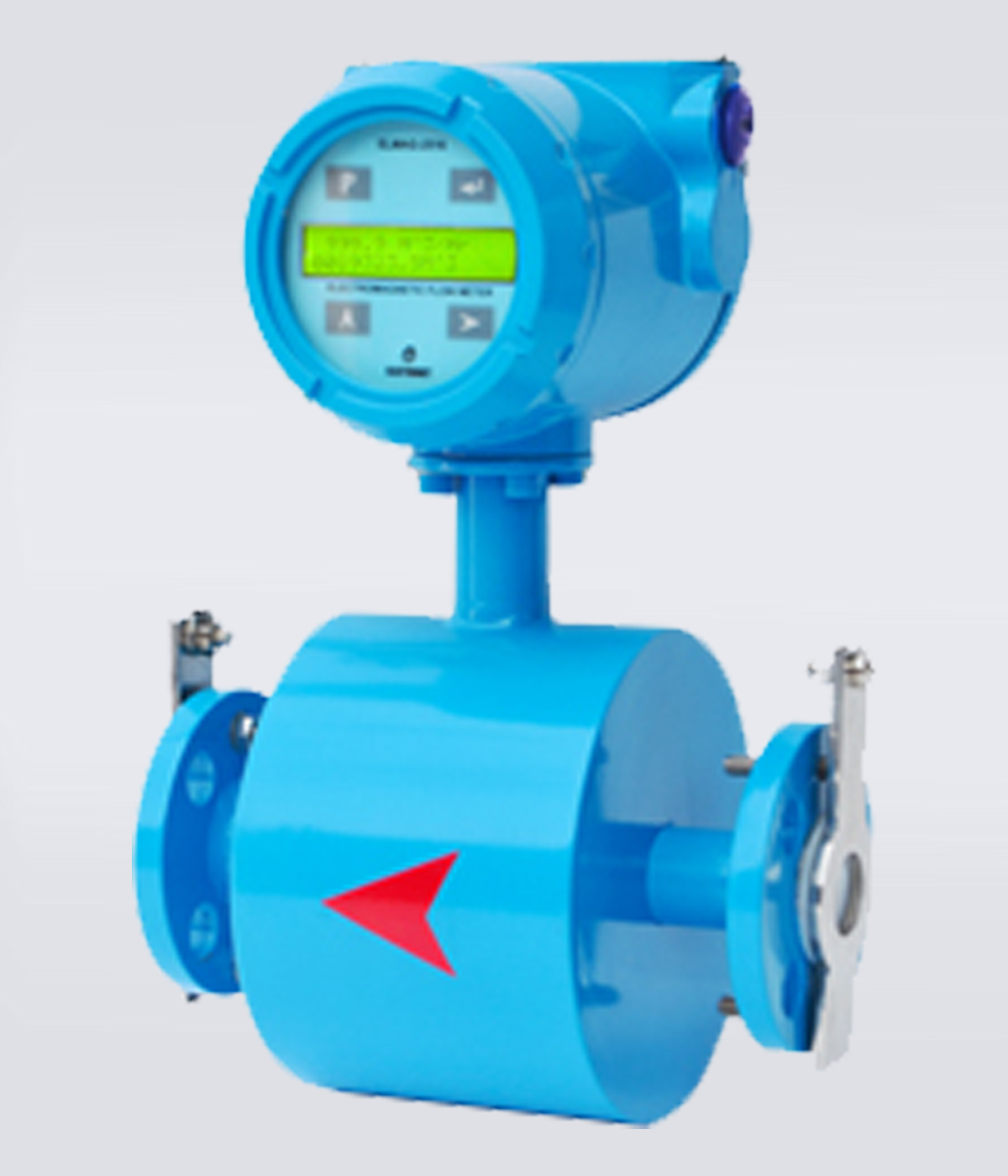

Electromagnetic Flow Transmitter
Electromagnetic Flow Transmitter
We have Electro Magnetic Flow Transmitters, which has Digital Readout for Flow Rate and Totalized Flow along with the output of 4 to 20 mA in proportionate to the Flow Rate. The Digital Indicator unit can be Field mounted or, Panel mounted. The very important point about Electro Magnetic type Flow Transmitter is, the medium must have conductivity at least 0.5 S/Cm.
These Flow Transmitters are also called as Magflow or, EM Flow Transmitters. Electromagnetic Flow Transmitters has no any moving parts in it, so these very well recommended for food grade applications like juices, milk, Muncipal or, Industrial Water, etc. Because there are no moving parts in it, these Transmitters are also suitable for liquids were there are lot of suspended particles like Sewage, Waste Water, Chemicals, Slurries etc.
Electomagnetic Flow Transmitters are available in three types on the basis of their construction. : Full Bore type Electromagnetic Flow Transmitters, Sandwich type Electromagnetic Flow Transmitters and Insertion type Electromagnetic Flow Transmitters.
Insertion type Electromagnetic Flow Meters are provided along with Hot Tab Assmebly for the safty in use, ease in installation and ease in maintenance.
These type of meters requirs very low maintenance.
Meter Sizes : DN 10 up to DN 2000
End Connections : Flanged Ends, Tri-Clover Ends, SMS type or, Wafer type.
Outer Body Materials : MS or, SS
Liner Materials : Soft or, Hard Rubber, PTFE, PFA or, Neoprene
Electrode Material : Hastelloy C or, B, Titanium
Velocity suitability : 0.5 up to 10 M/Sec.
